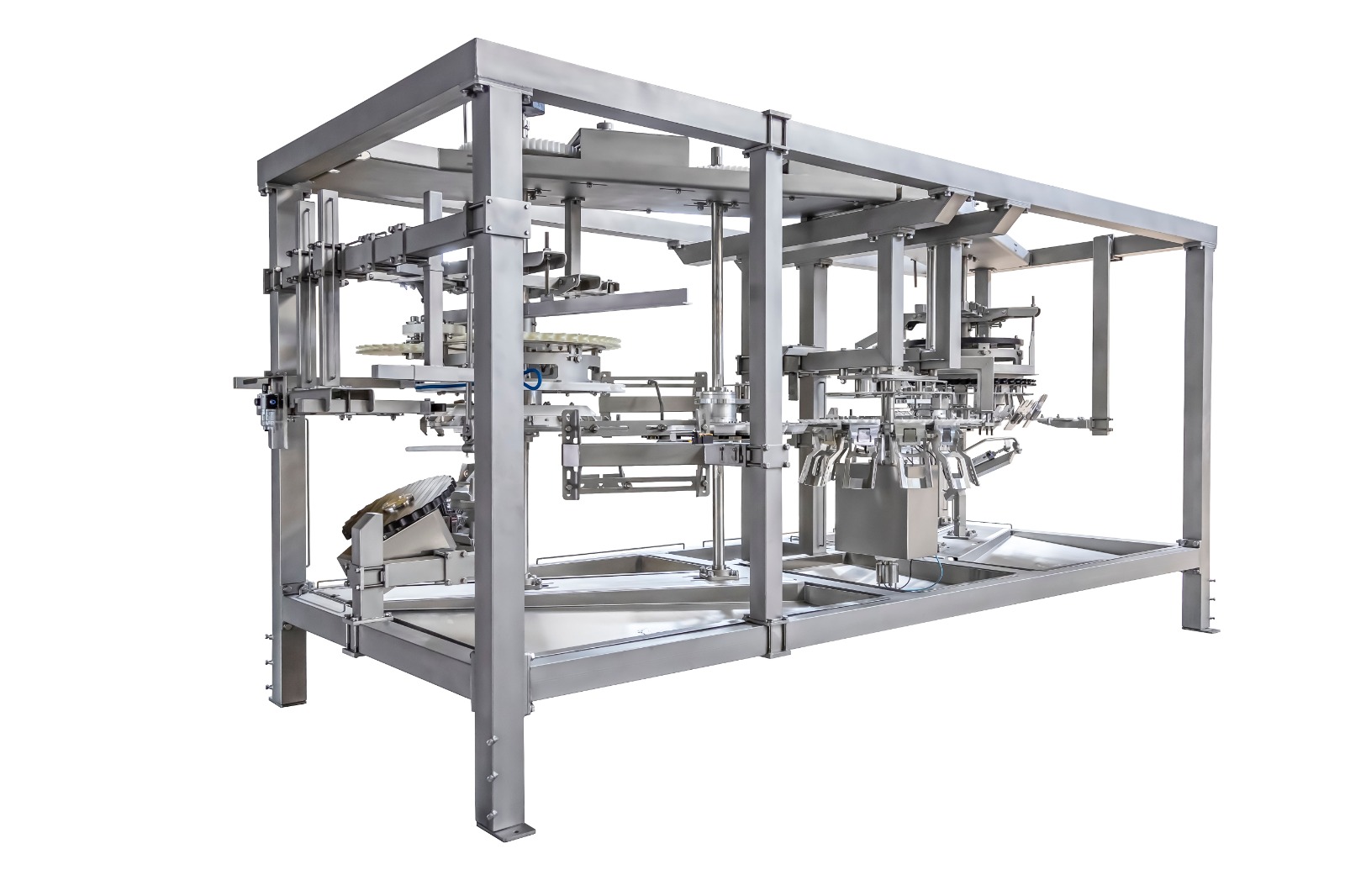

Weighing Re-Hanger - Chill to Grading & Cutting

Type: APT-S-D

Overview

The carcass re-hanger is specifically engineered for transferring carcasses from the chilling line to the grading line. It is designed to handle chickens weighing 800-3,500 grams. For optimal re-hanger performance, it is essential that the batch weight range remains balanced.

Operation:
Both the chill lines and the grading line are equipped with transmission and rotation generators. These generators are linked to the machine's electronic control system, which synchronises the speeds of the two lines. The re-hanger receives power from both chill line and the grading lines, ensuring their speeds remain synchronised through the electronic control system.

Technical Specifications:

Installed power: 0kW
Standard overall dimensions:
Length: 3,900mm
Width: 1,500mm
Height: 2,500mm
Weight: 1,420kg
