Automatic Receiving System

Fully automated crate handling systems are increasingly standard in modern slaughterhouses, streamlining operations at the reception area.

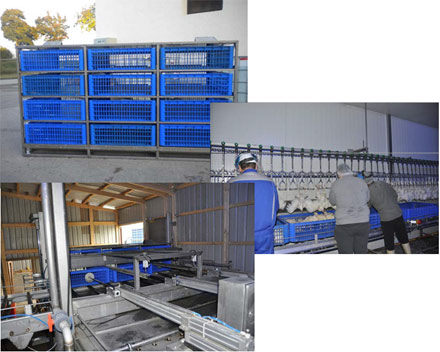

At PoultryProcessingEquipment.com, we prioritise cost-efficient, reliable systems that deliver maximum operational savings with minimal investment. Our automated receiving system manages all critical steps in the live bird reception process. Birds are collected from poultry houses and loaded into high-density (HD) transport containers, each equipped with 12 shelves of crates.

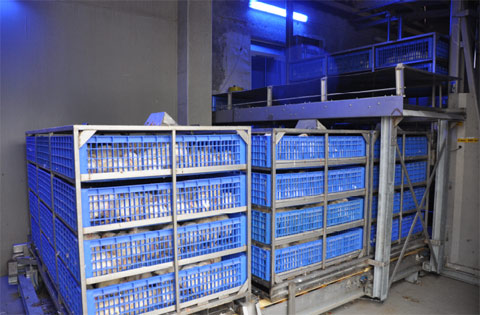

Upon arrival at the processing plant, containers are placed on a conveyor system, where crates are automatically unloaded. The crates then move toward the hanging area, while the containers are routed to a washing machine for thorough cleaning and disinfection.

Once birds are hung onto shackles, the empty crates are automatically conveyed through a crate washer to a reloading station. There, they are efficiently reinserted into the containers, ready for reuse.







The crates are then conveyed towards the hanging area, whilst the containers are transferred to a washing machine for full cleaning and disinfection.

After the birds have been hung into the shackles the crates are also conveyed automatically, via a crate washer, towards the reloading station. There, the crates are pushed back into the containers and are ready to be re-used.



Technical data: Automatic Receiving System

Type	Capacity bph	Length	Width	Height	Electricity kW/h
AA	Up to 12.000	Various	Various	Various	Depending on installed technology
